How to Install Tile Backer Board on a Wood Subfloor (DIY)
Fight seasonal wood movement with a beefy base
Tiling over an old, solid wood subfloor is dicey, even with a layer of backer board. Avoid tile and grout cracks in the finished floor with proper preparation and lots and lots of screws.
By the DIY experts of The Family Handyman Magazine
You might also like: TBD
Reinforce old 1 x subflooring before adding backer board
Elements of a solid subfloor
Wooden subfloors in older houses need to be strengthened and stabilized before backer board and tile are installed. The best method is to refasten the subfloor, then add a layer of plywood.
According to backer board manufacturers and tile setters, installing backer board directly over an old, solid-wood subfloor is risky for a couple of reasons: First, changes in humidity make solid wood shrink, swell and cup more than plywood. Second, the strength of wood boards isn't always consistent. Splits and knots create weak spots that flex and lead to cracking tile.
Here are two steps that compensate for solid wood's shortcomings:
- Screw the old floorboards to joists with 2-in. screws. Place the screws no more than 3 in. apart. Screws have better “hold-down” power than nails and will help prevent boards from loosening or cupping.
- Add a layer of 1/2-in. BC plywood over the old subfloor, using construction adhesive and driving 1-1/4-in. screws every 6 in. The plywood adds stiffness and stability to the floor.

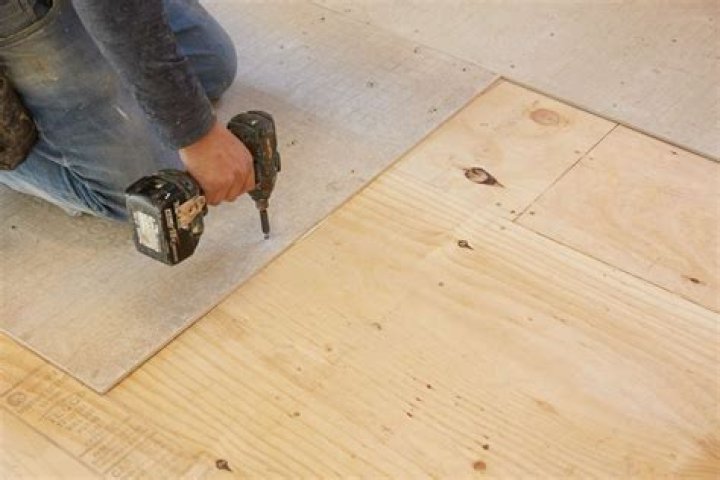

With the plywood in place, install the backer board as you normally would. To avoid building up the floor too high, you can use 1/4-in.-thick backer board instead of 1/2-in. backer.
Required Tools for this Project
Have the necessary tools for this DIY project lined up before you start—you’ll save time and frustration.
Required Materials for this Project
Avoid last-minute shopping trips by having all your materials ready ahead of time. Here’s a list.
